MasterLine 8 aluminum doors offer excellent levels of security, thermal insulation and stability. The high-quality door series can reach Passive House insulation levels, making them ideal for sustainable renovations and new builds.

MASTER LINE 8

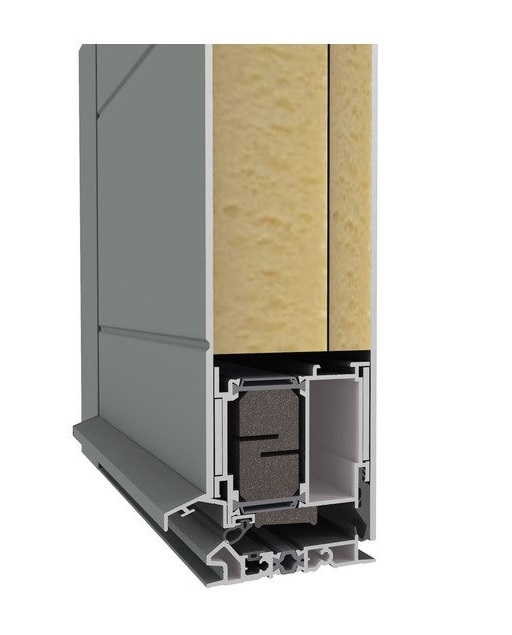

masterline-8-paneldoor

Thermal insulation Passive

Acoustics-Rw (C;Ctr): 43(-1;-4)

Burglary resistance: RC2 - RC3- PAS24

Max weight: Krilo 250 kg

Resistance to wind load: Class C3 (1200Pa)

Uf value : 1.3 W/m²K

Functionality when opening and closing: Class 8

logo rayners

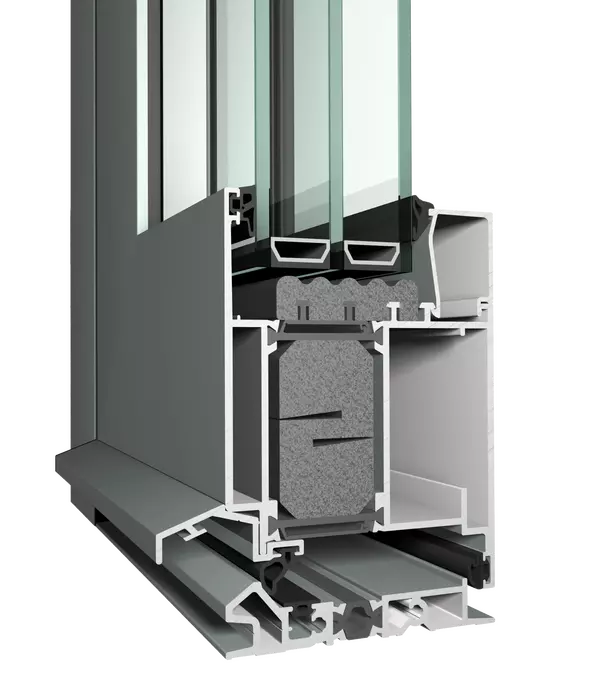

MASTER LINE 8 TEHNIČKE KARAKTERISTIKE

CHARACTERISTICS

Energy

Thermal insulation – Uw 1.3 W/m²K



Comfort

Air tightness: Class 4 (600Pa)
Waterproof Class 7A (300Pa)
Resistance to wind load: Class C3 (1200Pa)
Acoustics – Rw (C;Ctr) 43(-1;-4) dB
Functionality when opening and closing: Class 8

Safety

Burglary protection RC2 RC2–RC3–PAS 24
Impact resistance I5/E5
Fire resistance EI₂ 30

* Note: Performance and properties may vary depending on the combination of profiles

Safety

Sightlines

Min. frame width (internal opening) 68.5 mm
Min. sash width (internal opening) 78.5 mm
Min. frame-sash width (internal opening) 153 mm
Min. frame width (external opening) 42.5 mm
Min. sash width (external opening) 104.5 mm
Min. frame-sash width (external opening) 153 mm
Min. width of T profile (crossbars) 50 mm
Min. threshold height 0 mm
Frame depth 77 mm
Wing depth 77 mm
Depth frame-sash 77 mm

Glazing

Rebate height 27 mm
Glazing method Dry glazing - Siliconized glazing - Internal glazing - Internal glazing - Glazing bead
Min. glass thickness - wing 4 mm
Max. glass thickness – wing 58 mm

Max. dimensions and weight

Min. wing height 500 mm
Max. wing height 3000 mm
Min. wing width 500 mm
Max. wing width 1400 mm
Max. wing weight 250 kg
Max. fixed field weight 250 kg
Max. težina stakla 1200 kg

REFERENCES MASTER LINE 8

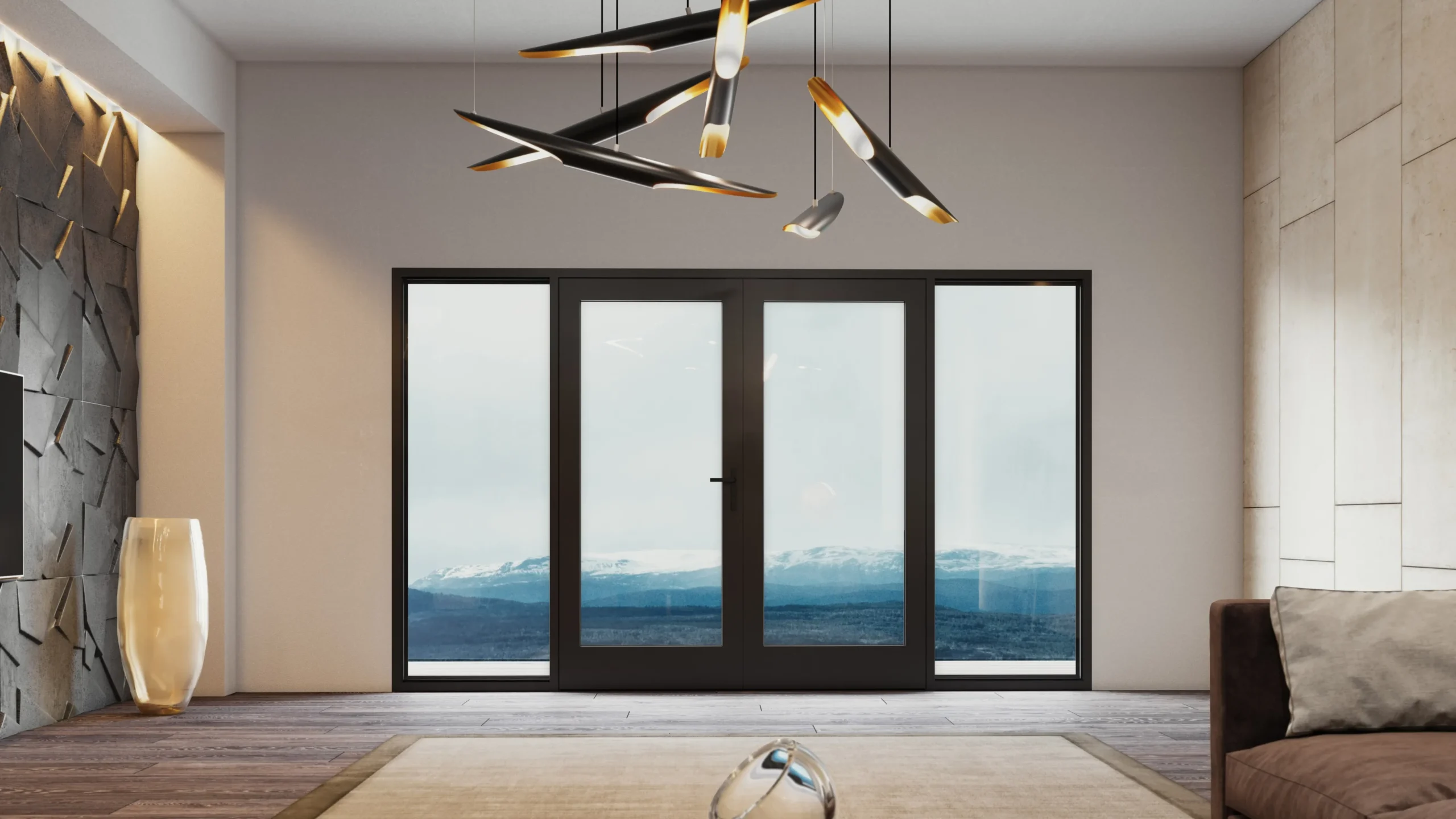

MasterLine-8-Door-Reynaers-Aluminium-347473-rel3cb1b4b7

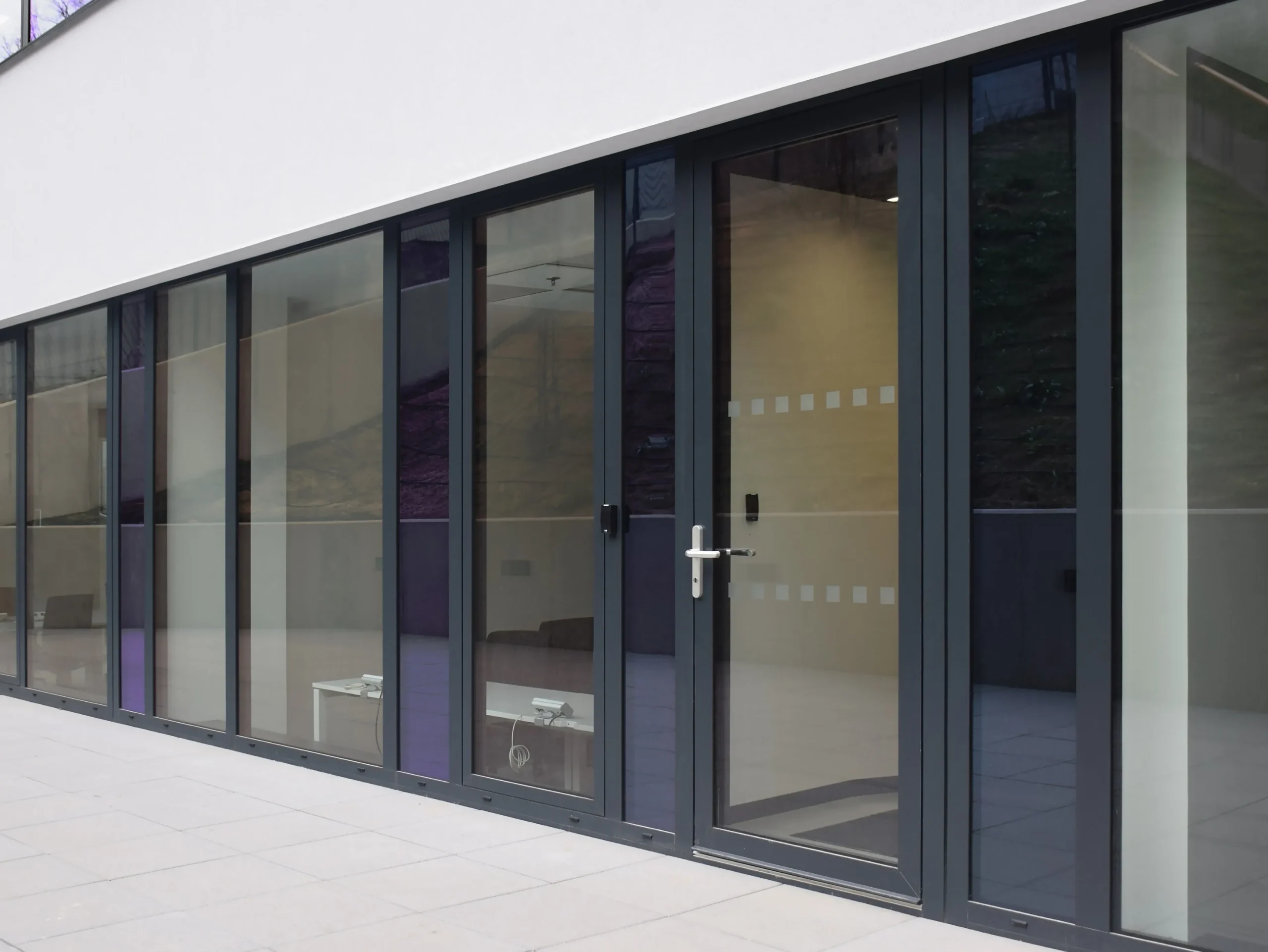

MasterLine-8-Door-Reynaers-Aluminium-347473-rel677e628d

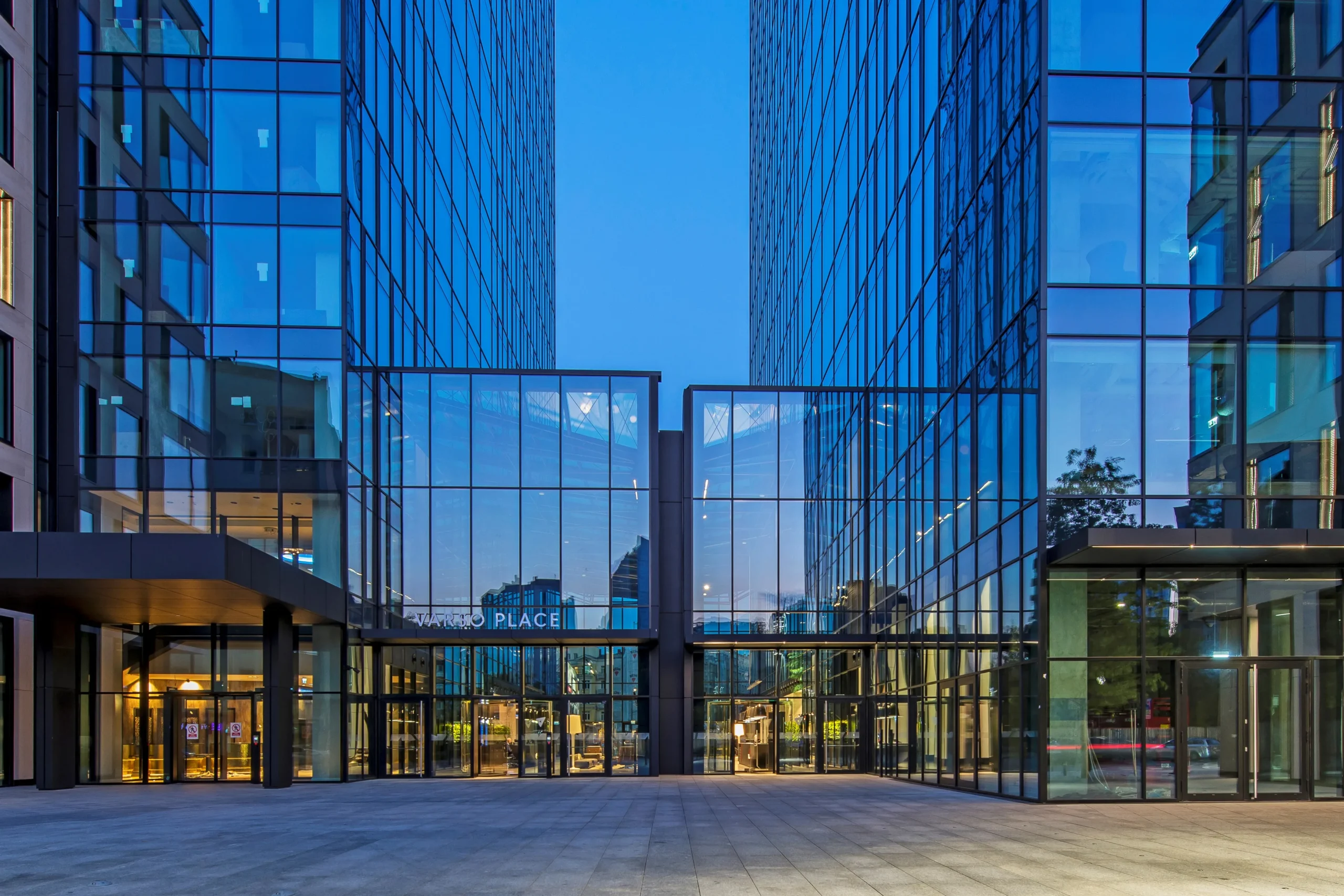

MasterLine-8-Door-Reynaers-Aluminium-347473-rel628ce254

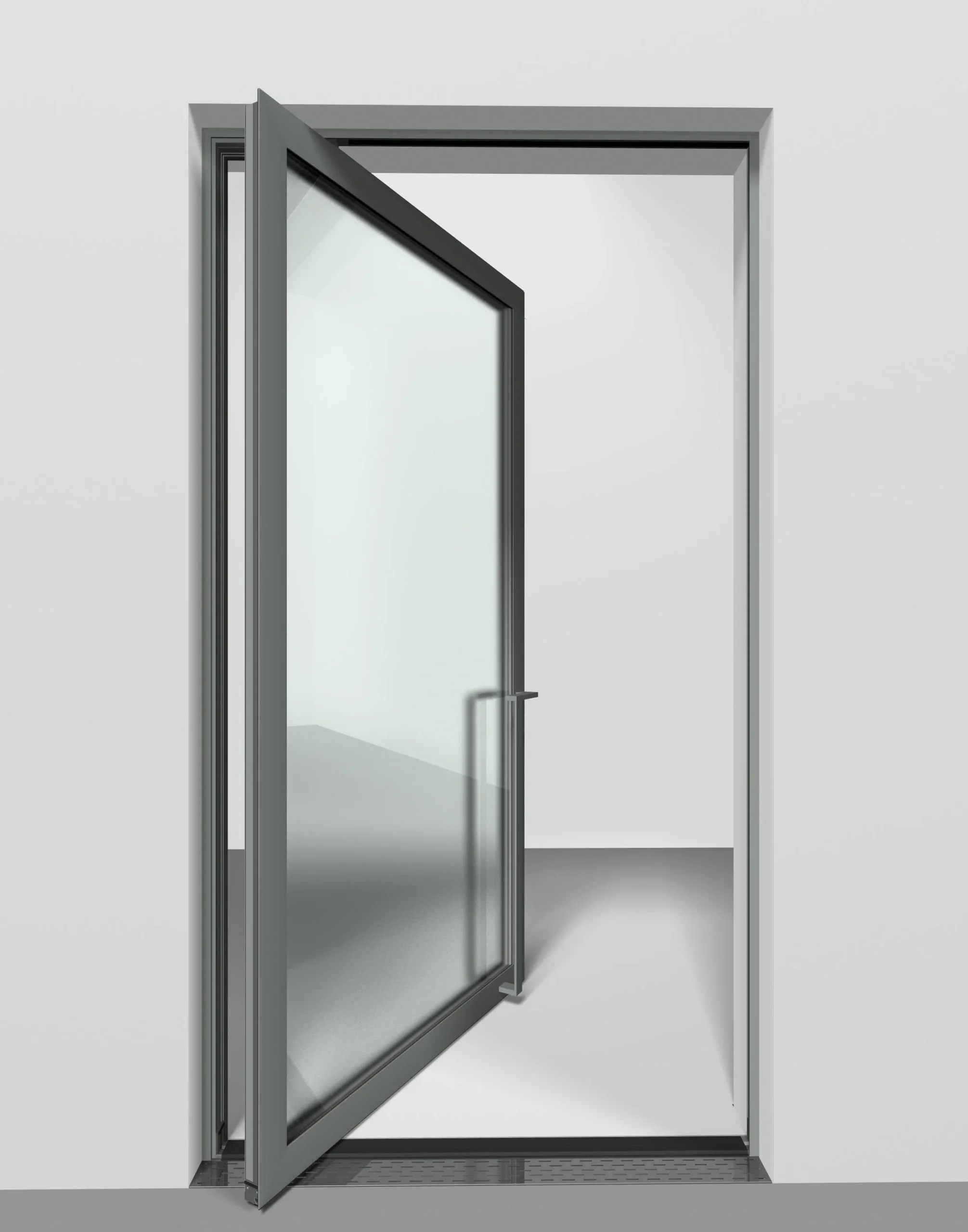

MasterLine-8-Door-Reynaers-Aluminium-347473-rela976a33f

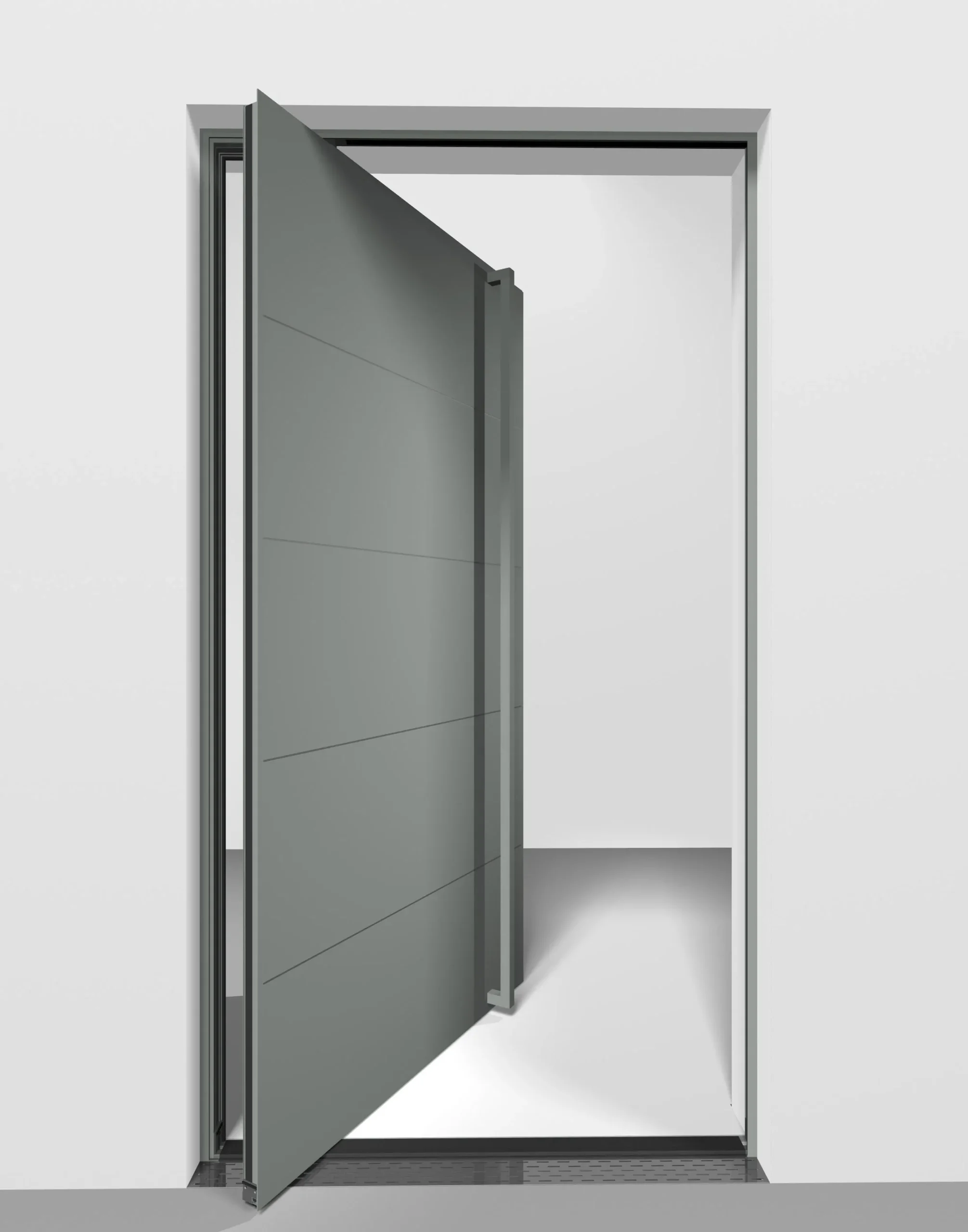

MasterLine-8-Door-Reynaers-Aluminium-347473-rel5101fbb

ADDITIONAL OPTIONS MASTER LINE 8

116981_Access Control copy
Access control
Make your home smart and connected.
127152_Reynaers_Iconen_Anti-Finger-Pinch_RGB_Color
Anti-finger trap
Reduced risk in public places
116984_Zero Threshold copy
Zero Threshold
Entry without borders
116980_Softclose copy
Softclose
It combines safety and comfort.
116964_Concealed Hinges
Hidden hinges
The details are the design, the hidden hinges are the finishing touch.
116962_Panic copy
Panic
Tried and tested, for peace of mind.
116959_Low Threshold
Low threshold
Easy access, cleaner look.
116957_Gutter copy
Gutter
Better water performance, without adding thresholds.
116963_Concealed Drainage
Hidden drainage
No more plastic covers, enjoy clean lines.

COLOR PALETTE RAL

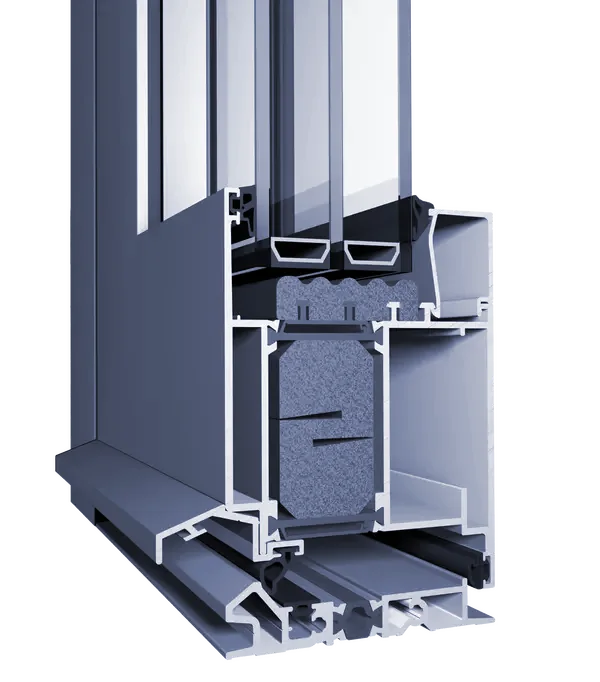

MASTER LINE 8117185_masterLine 8-HI+ Door cut_Mitre_Inward opening_color
ral-k7-karta-u-boji-16.0006.18-1
RAL is the European color matching system that applies to powder coating and other finishes. The industry standard RAL color palette includes over 200 different colors. They are available in matte, semi-gloss and glossy finishes. The painting process involves the application of powdered polyester paint that is baked on aluminum. This provides a very durable, tough coating that will withstand all our British weather without fading or peeling. It also stands up to the rigors of modern life and is impact and abrasion resistant.
