ConceptSistem 77 is a first-class aluminum door system, available in a large number of opening types and design styles. The versatile solution offers the widest range of security requirements, including fire and bullet resistant variants.

CONCEPT SYSTEM 77

117179_CS77-HID_OutwardOpening detail_LR

Thermal insulation 1.8 W/m²K

Acoustics-Rw (C;Ctr): 42(-1;-4) dB

Burglary resistance: I5/E5

Max. wing weight 250 kg

Resistance to wind load: Class C2 (800Pa)

Functionality when opening and closing: Class 8

logo rayners

CHARACTERISTICS

Energy

Toplotna izolacija – Uw od 1.4 – 1.8 W/m²K



Comfort

Air tightness: Class 4 (600Pa)
Waterproof Class 7A (300Pa)
Resistance to wind load: Class C2 (800Pa)
Acoustics – Rw (C;Ctr) 42(-1;-4) dB
Functionality when opening and closing: Class 8

Safety

Burglary protection RC2RC2–RC3–PAS 24
Impact resistanceI5/E5
Fire resistanceEI₁ 30–EI₂ 30–EI₂ 60–EW 30
Otpornost na metkeFB4–FSG–FB6–Kalashnikov

* Note: Performance and properties may vary depending on the combination of profiles

Safety

Sightlines

Min. frame width (internal opening)68 mm
Min. sash width (internal opening)76 mm
Min. frame-sash width (internal opening)150 mm
Min. frame width (external opening)42 mm
Min. sash width (external opening)102 mm
Min. frame-sash width (external opening)150 mm
Min. width of T profile (crossbars) 76 mm
Min. threshold height 0 mm
Frame depth 68 mm
Wing depth 68 mm
Depth frame-sash 68 mm



Glazing



Rebate height 25 mm
Glazing method Dry glazing–Siliconized glazing–Internal glazing–Glazing bead
Min. glass thickness – frame/element 4 mm
Min. glass thickness – frame/element 52 mm
Min. glass thickness - wing 4 mm
Max. glass thickness – wing 52 mm



Max. dimensions and weight

Max. wing height 3000 mm
Min. wing width 500 mm
Max. wing width 1400 mm
Max. wing weight 250 kg
Max. fixed field weight 280 kg

REFERENCE CONCEPT SYSTEM 77

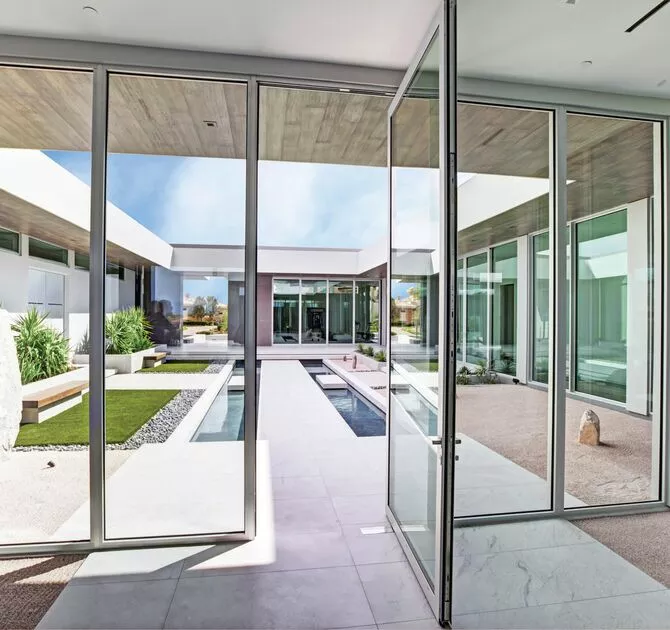

CS 77 64048_Painted Feather-CourtyardDay-5 (1)

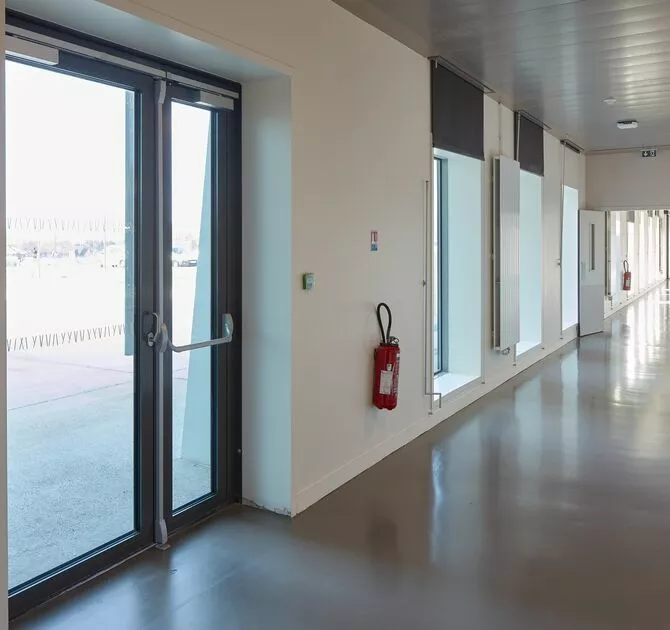

62508_Reynaers-Hopital-Melun-(25) (1)

ADDITIONAL OPTIONS CONCEPT SYSTEM 77

116980_Softclose copy
Softclose
It combines safety and comfort.
116984_Zero Threshold copy
Zero Threshold
Entry without borders
CS 77 FUNCTIONAL & PANEL OPTIONS

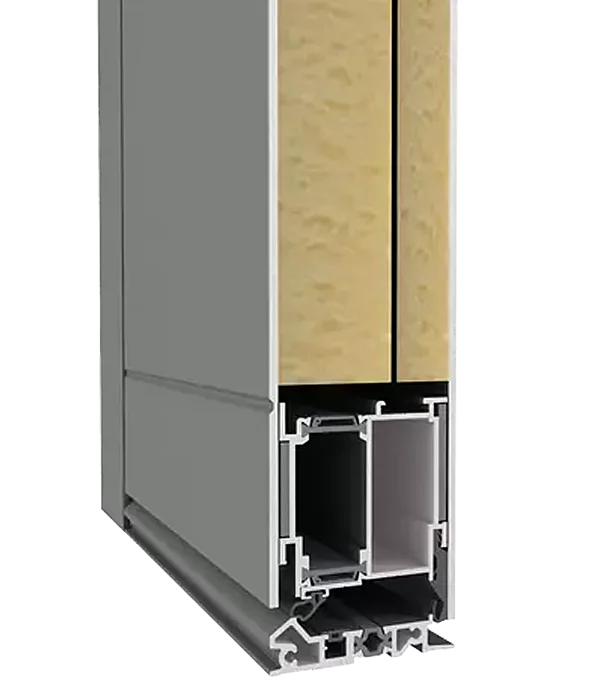

00000

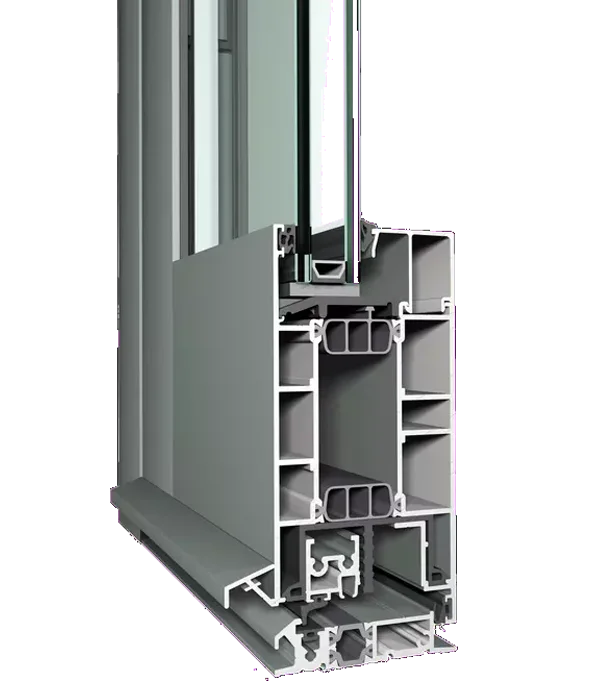

100000 copy
116963_Concealed Drainage
Hidden drainage
No more plastic covers, enjoy clean lines.
116964_Concealed Hinges
Hidden hinges
The details are the design, the hidden hinges are the finishing touch.
116981_Access Control copy
Access control
Make your home smart and connected.
116959_Low Threshold
Low threshold
Easy access, cleaner look.
116962_Panic copy
Panic
Tried and tested, for peace of mind.

COLOR PALETTE RAL

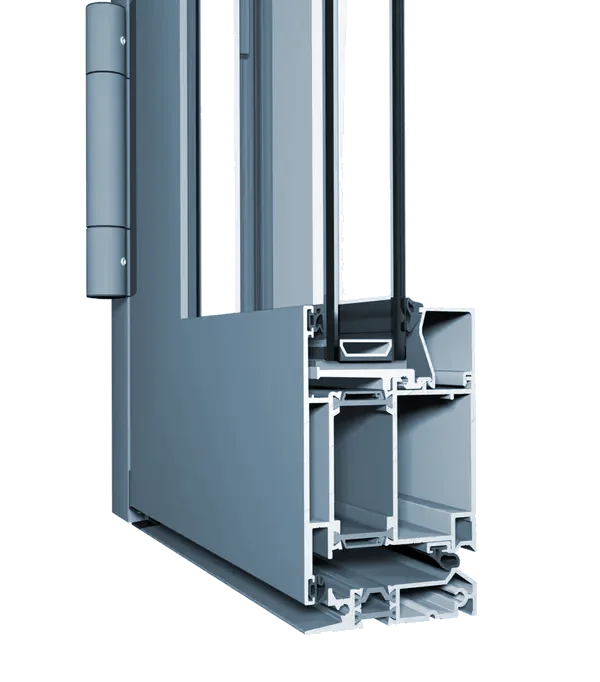

117179_CS77-HID_OutwardOpening detail_LR0117179_CS77-HID_OutwardOpening-detail_LR copy
ral-k7-karta-u-boji-16.0006.18-1
RAL is the European color matching system that applies to powder coating and other finishes. The industry standard RAL color palette includes over 200 different colors. They are available in matte, semi-gloss and glossy finishes. The painting process involves the application of powdered polyester paint that is baked on aluminum. This provides a very durable, tough coating that will withstand all our British weather without fading or peeling. It also stands up to the rigors of modern life and is impact and abrasion resistant.
RAL PALETA BOJA
